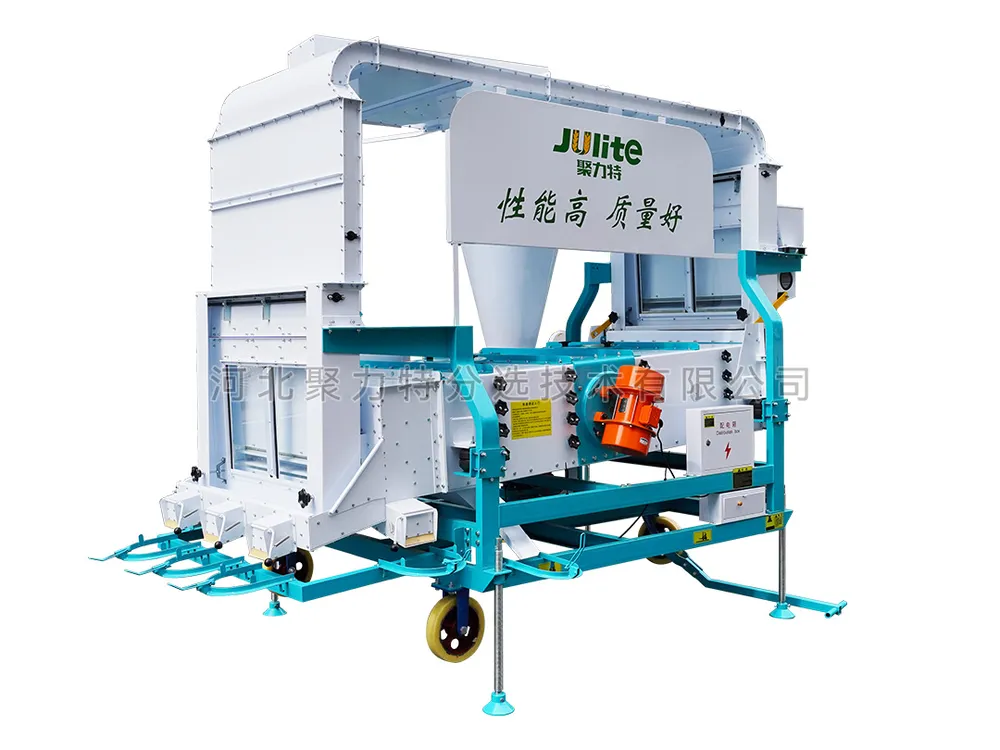

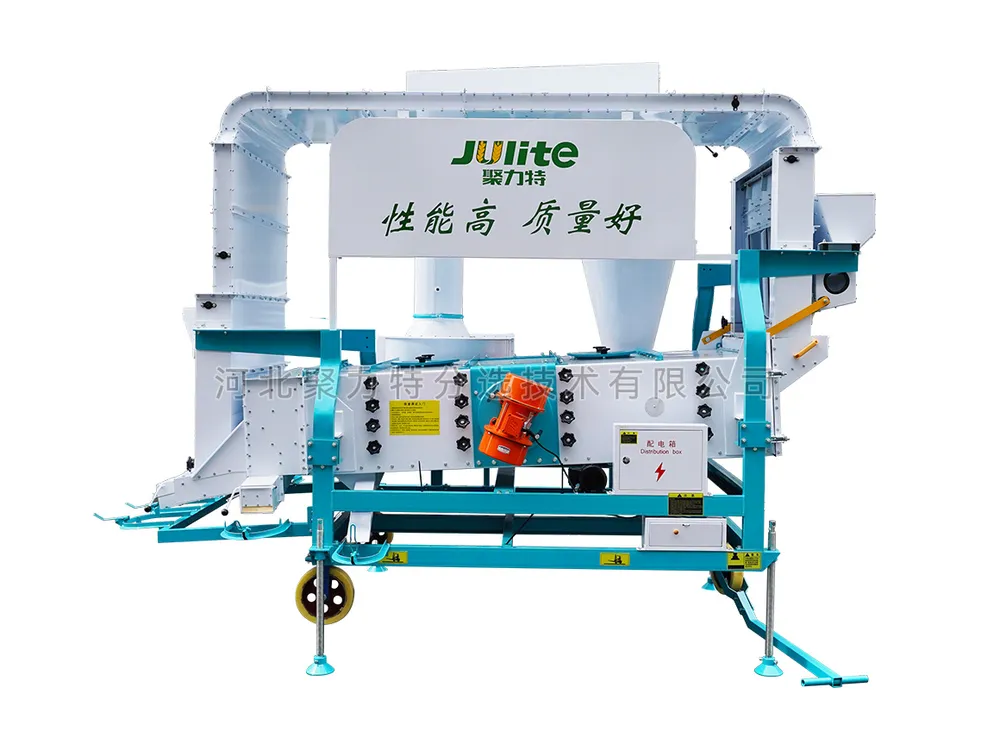

5XFS-7.5FC Double Air Screen Cleaner
Доставка
Срокът на доставка обикновено варира от 15 до 30 работни дни след потвърждаване на поръчката, в зависимост от конфигурацията на продукта, производствения график и местоназначението. Всички машини са надеждно опаковани за безопасно транспортиране. Точните срокове за доставка, начинът на доставка и подробностите за проследяване ще бъдат потвърдени преди изпращането.
Описание

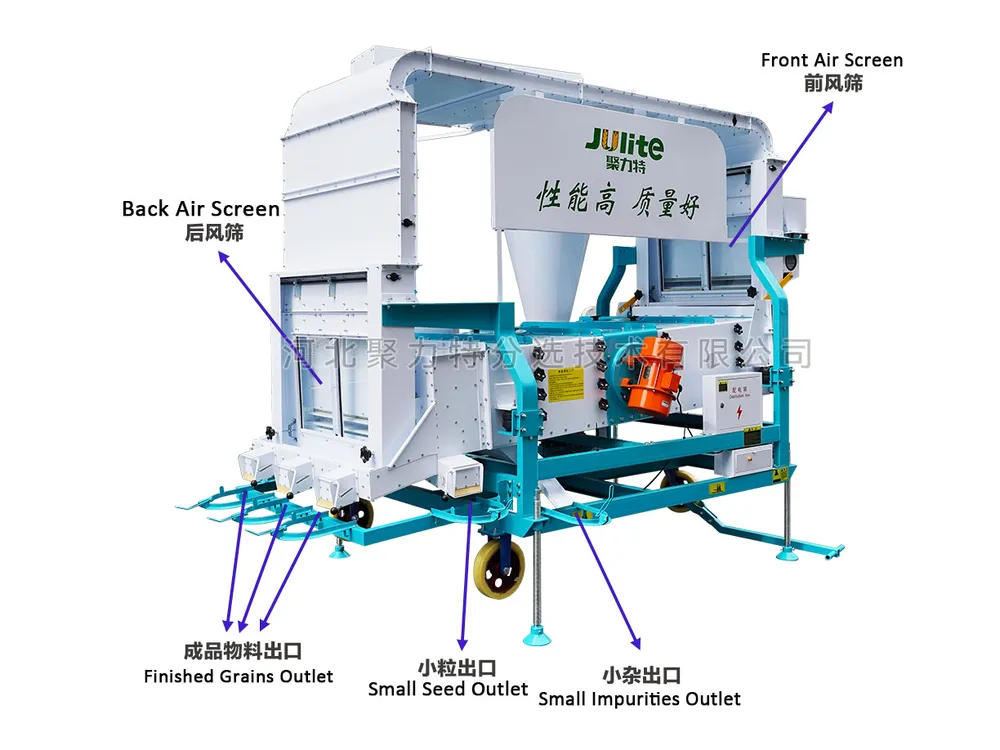

Materials enter the front-end vertical air screen through elevator or screw conveyor, this wind selection can remove light impurities according to the different proportion of impurities and materials. Then the materials enter vibration sieve, which can clean big and small impurities by different types of highly precise punching sieve in accordance with different sizes of grains. Finally materials enter the back-end air screen; the secondary wind selection can remove the remnant light impurities further.
Feature
- Double air screen and twice wind screening,especially benifit for the sesame cleaning
- The two air screens arrange symmetrically and control individually.
- The back-end air screen will remove some dust produced by some clods in the secondary wind selection, thus enhancing the brightness of finished product.
- Large sieve surface design of 1.25m×2.4m, multi-function and easy to change sieves.
- Bucket elevator and screw conveyor can be chosen in accordance with different materials.
- .This cleaner is suitable for materials with high impurities, such as sunflower seed, melon seed, buckwheat, flax seed, sesame seed, etc.
Specification
| Model | Sieve | Sieve Size (mm) | Power (kW) | Capacity (t/h) | Weight (kg) | Size L × W × H (mm) |
|---|---|---|---|---|---|---|
| 5XFS-7.5FB | Three Layers | 1250×2400 | 9.35 | 7.5 | 1730 | 3990×2720×3500 |
| 5XFS-7.5FC | Four Layers | 1250×2400 | 9.35 | 7.5 | 1770 | 3990×2720×3500 |
