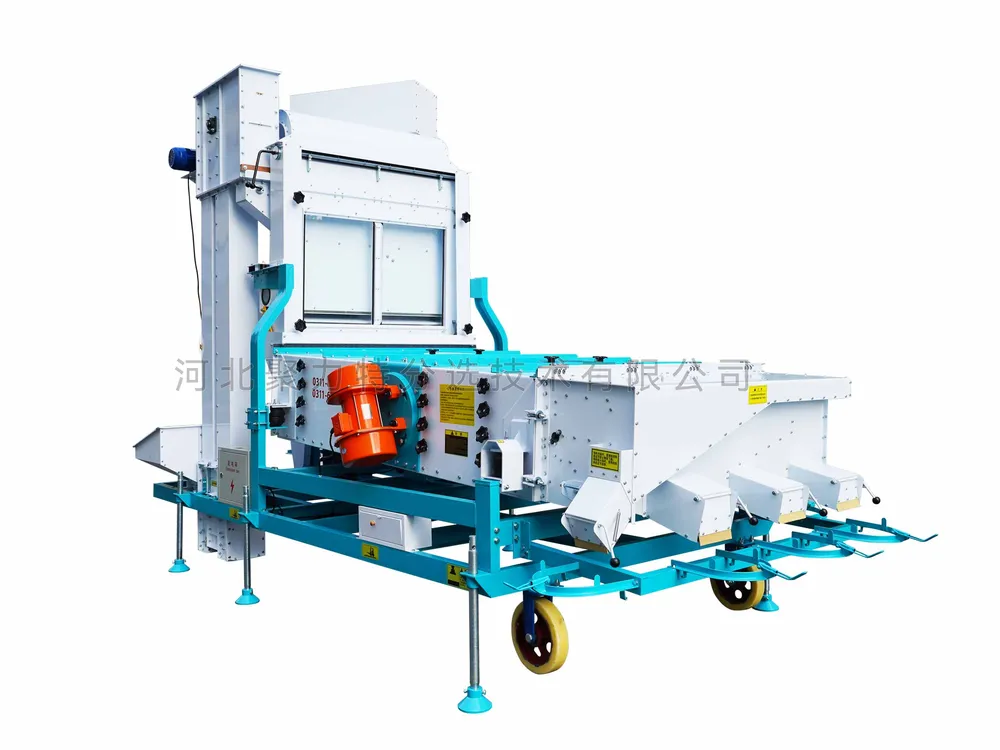

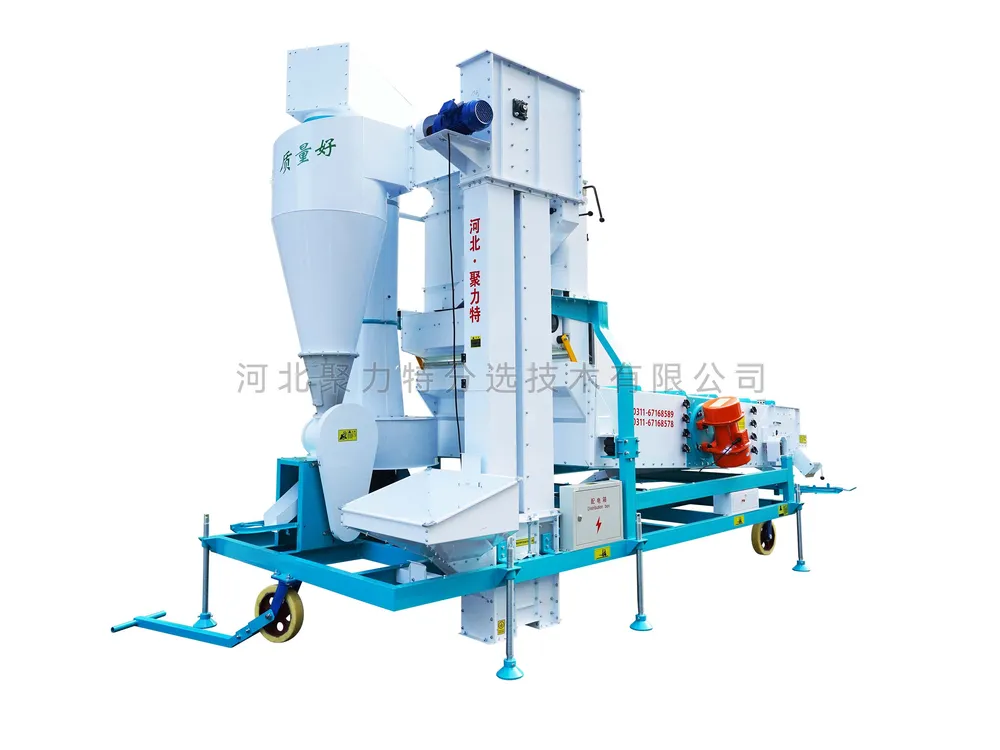

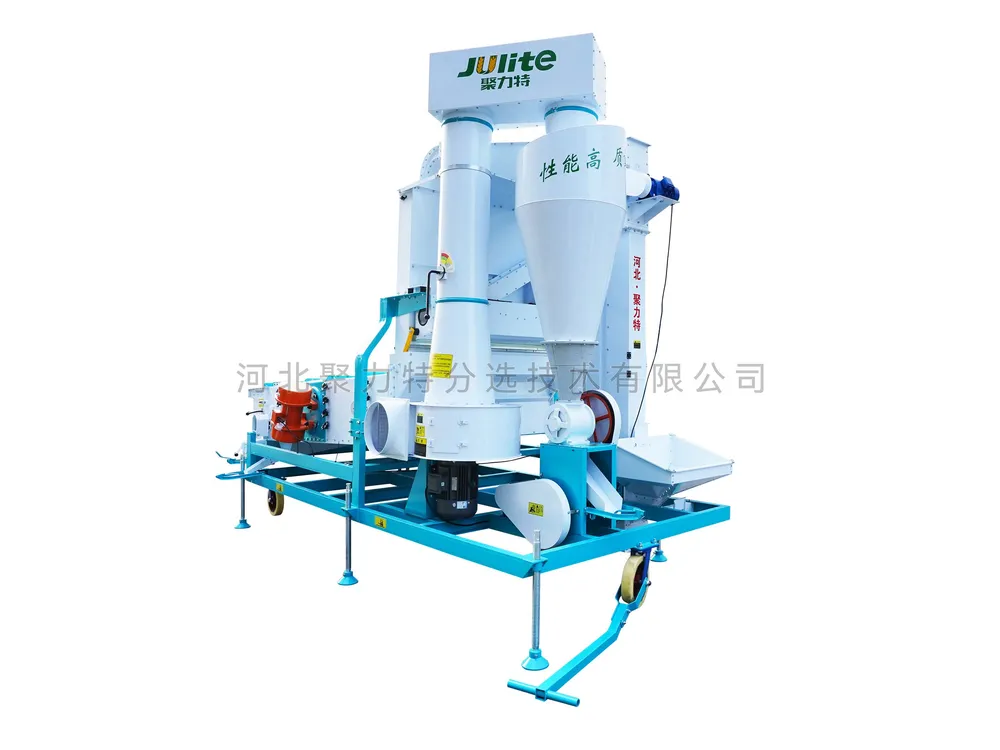

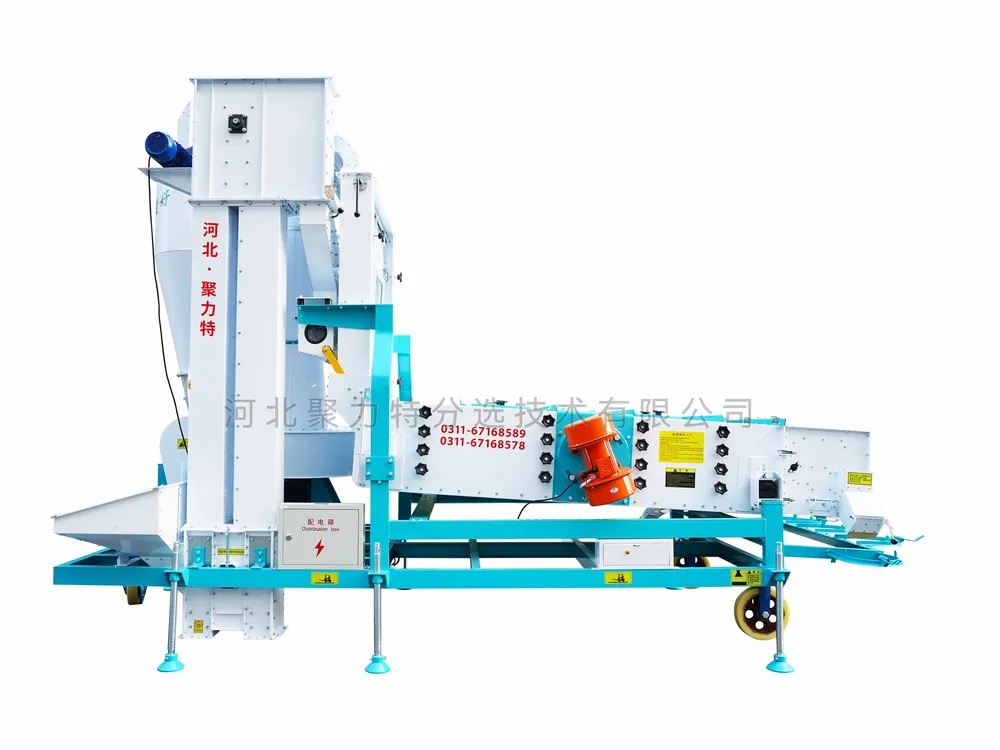

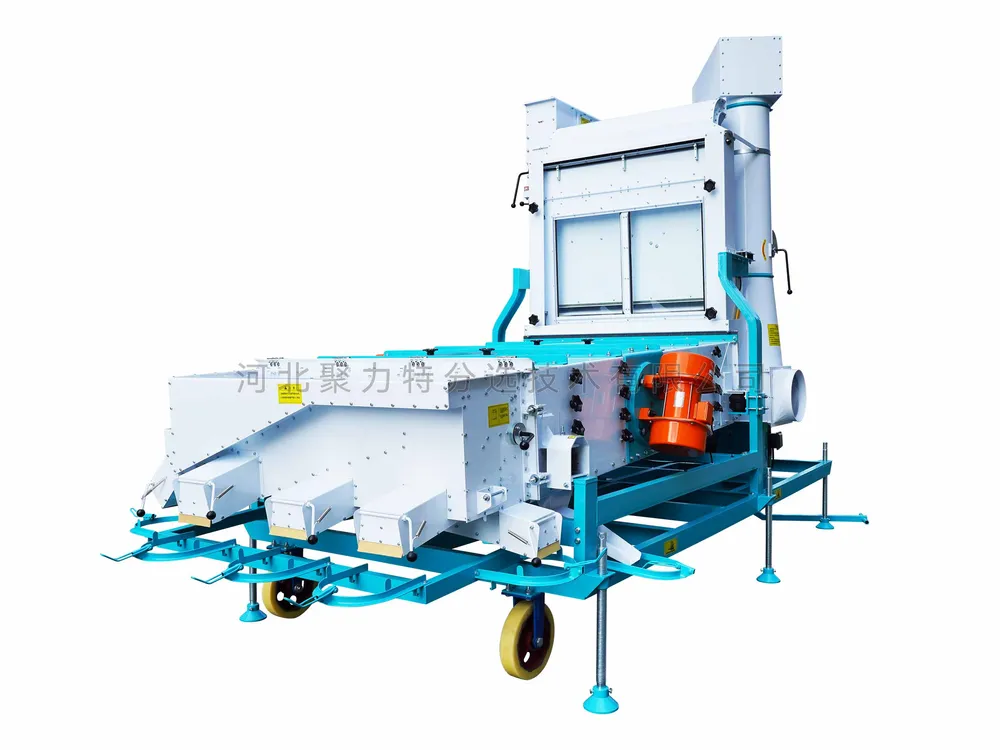

5XFS Series Air-Screen Cleaner
Доставка
Срокът на доставка обикновено варира от 15 до 30 работни дни след потвърждаване на поръчката, в зависимост от конфигурацията на продукта, производствения график и местоназначението. Всички машини са надеждно опаковани за безопасно транспортиране. Точните срокове за доставка, начинът на доставка и подробностите за проследяване ще бъдат потвърдени преди изпращането.
Описание
Maize cleaning machine consists of bucket elevator, dust catcher, enclosed rotary unloading valve, vertical screen, and vibration grader.
Features

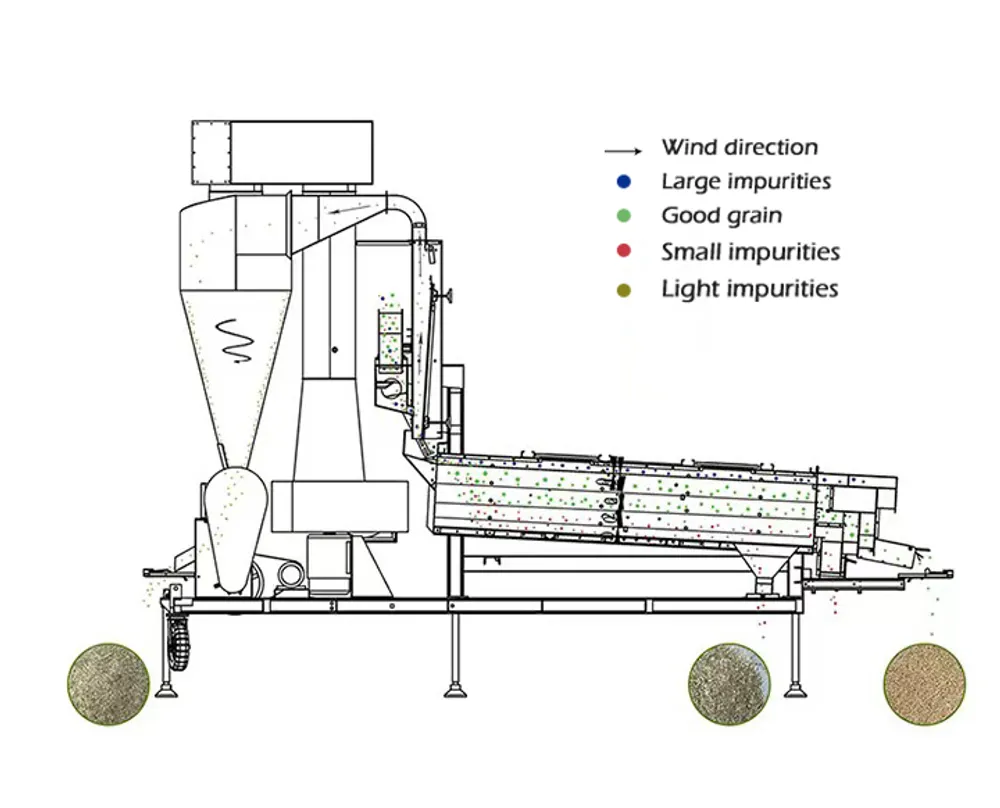

Maize cleaning machine can clean light impurities through vertical air screen and the vibration sieve can clean big and small impurities.
The material can be classified into big, medium and small particles with different layers of sieves.
It is widely used in seed processing and agricultural product processing industry.
Specifications
| MODEL | LAYER | SIEVE SIZE (mm) | CAPACITY (t/h) | POWER (kW) | WEIGHT (t) | OVERALL SIZE (L × W × H) (mm) |
|---|---|---|---|---|---|---|
| 5XFS-7.5B | THREE | 1250×2400 | 7.5 | 7.9 | 1.82 | 5110×2130×3470 |
| 5XFS-7.5C | FOUR | 1250×2400 | 7.5 | 7.9 | 1.86 | 5110×2130×3470 |
| 5XFS-10B | THREE | 1500×2400 | 10 | 10.3 | 2.01 | 5110×2448×3633 |
| 5XFS-10C | FOUR | 1500×2400 | 10 | 10.3 | 2.06 | 5110×2448×3633 |
| 5XFS-10CD | FIVE | 1500×2400 | 10 | 10.5 | 2.56 | 5200×2430×3650 |
