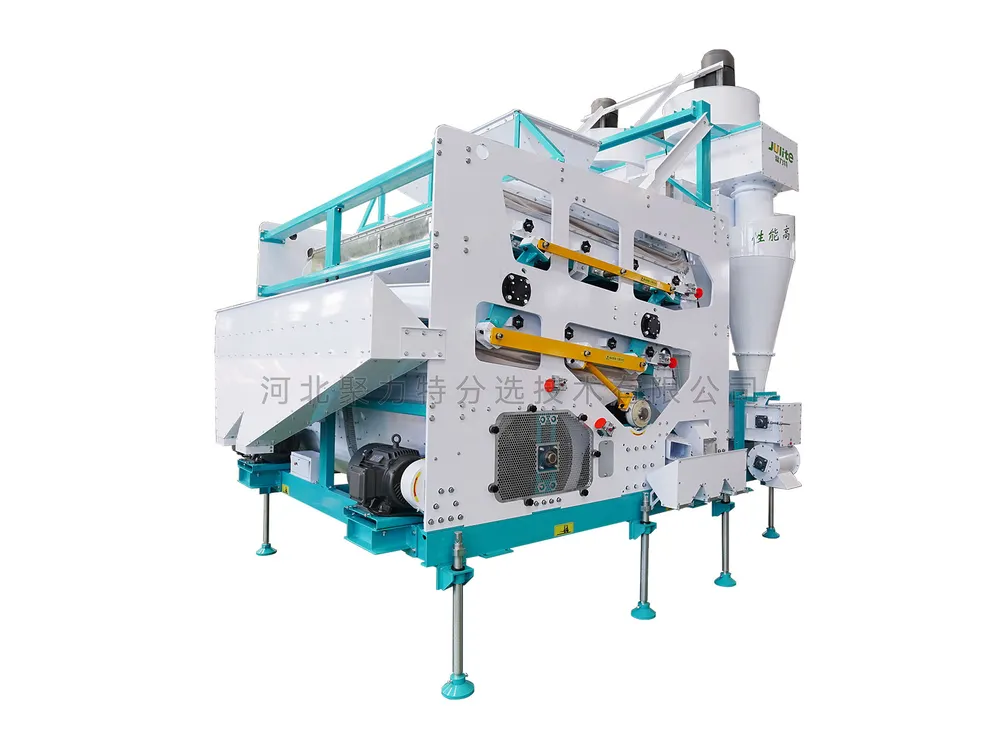

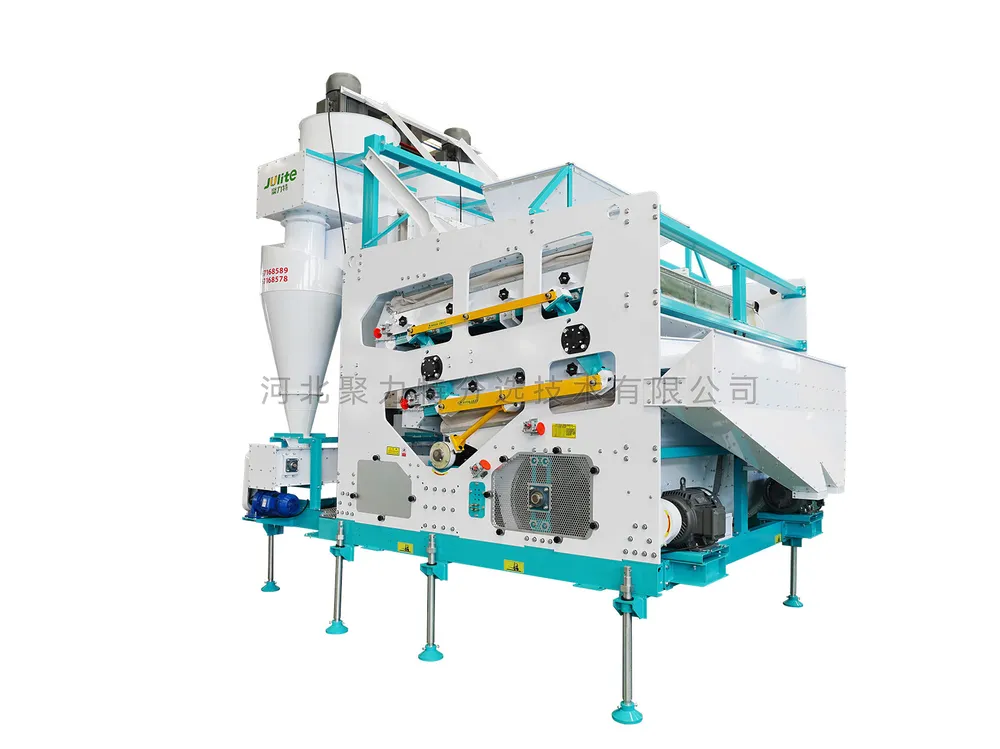

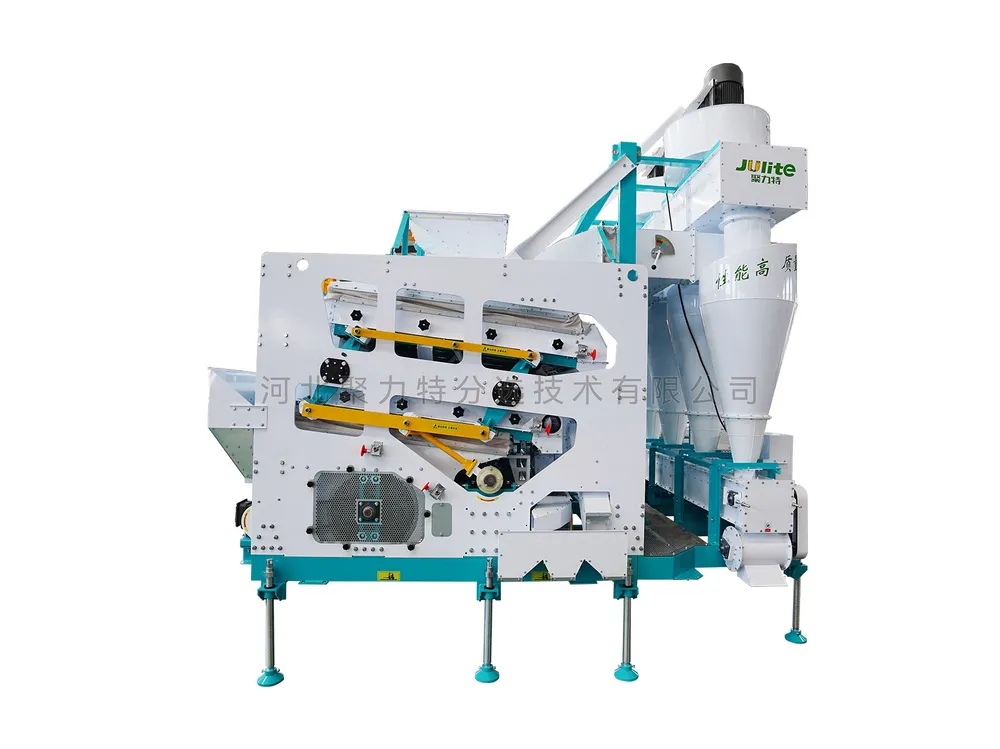

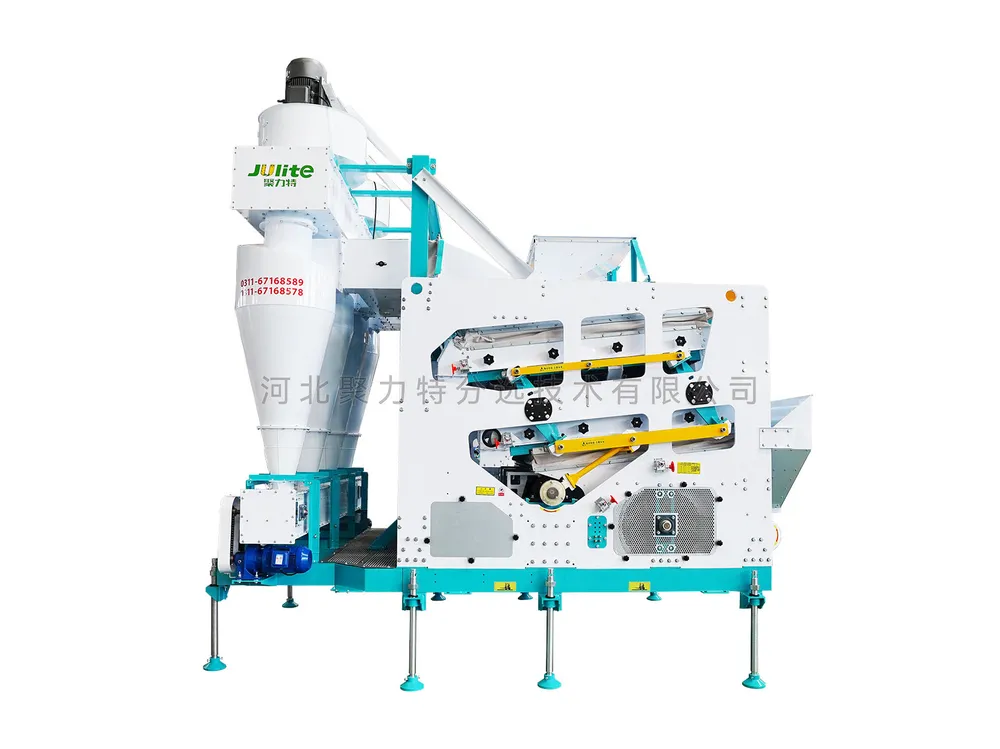

5XFZ-300Z Double Gravity Table Cleaner
- Name: Double Gravity Table Cleaner
- Model: 5XFZ-300Z
- Gravity Sieve (mm): 1700x2565
- Power (kw): 44.35
Доставка
Срокът на доставка обикновено варира от 15 до 30 работни дни след потвърждаване на поръчката, в зависимост от конфигурацията на продукта, производствения график и местоназначението. Всички машини са надеждно опаковани за безопасно транспортиране. Точните срокове за доставка, начинът на доставка и подробностите за проследяване ще бъдат потвърдени преди изпращането.
Описание
Our wheat processing machine is suitable for the centralized cleaning and processing of various raw grains. Compared with traditional grain cleaners, it has significant advantages such as high output, multi-function integration, high precision, environmental protection, and energy saving. It is suitable for cleaning and processing various crop seeds or commercial grains such as corn, wheat, paddu rice, barley, peas, soybeans, mung beans, and oil seed.
Working principle

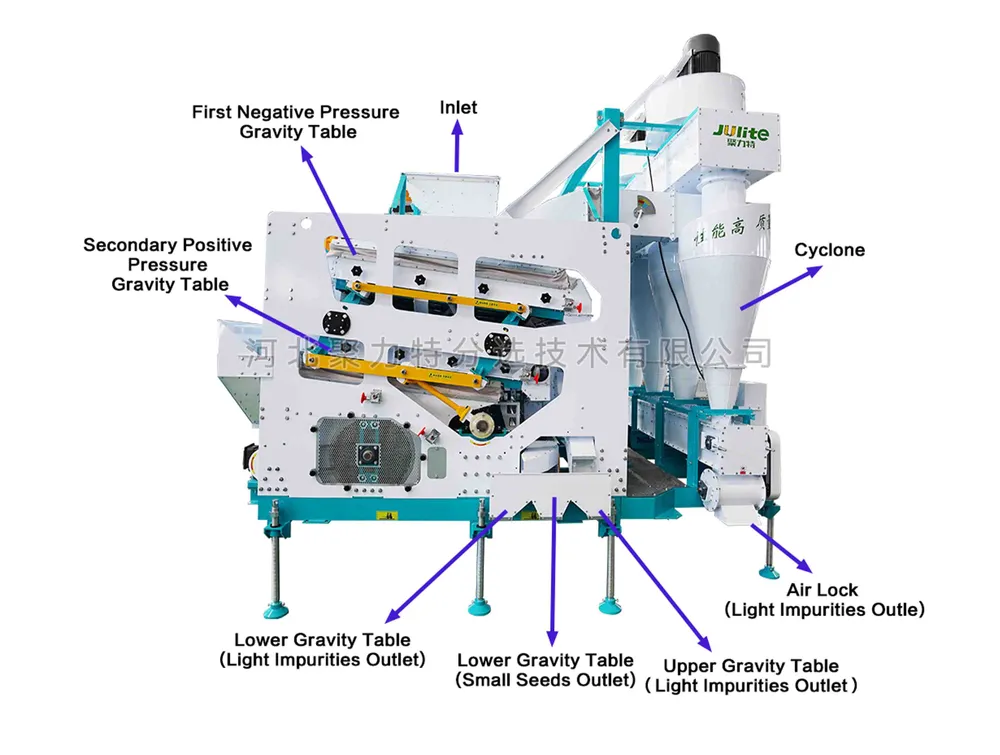

The material is conveyed through the conveying equipment and fed into the first negative pressure gravity table through the feed hopper. Air separation removes light impurities such as dust and chaff. These impurities pass through air clue and spiral dust collectors, and are then discharged and collected by the air lock. Gravity separation effectively removes lighter impurities such as straw and axle pieces. The material then passes through a grain guide mechanism and enters the second positive pressure gravity table. Gravity processing is performed by adjusting the air volume and baffle position to effectively remove impurities such as broken grains, blighted seeds, sprouted seeds, insect-damaged seeds, and moldy seeds. The finished product is discharged from the top of the gravity table.
Advantages
Advanced Technology
The side frame is formed from two 20mm thick steel plates through laser cutting and machining, resulting in a one-piece design that offers excellent strength and rigidity. Compared to traditional processes, it is more stable, reliable, and aesthetically pleasing.
Ultra-High Capacity
The ultra-wide gravity table allows for a primary sorting output exceeding 60t/h and a fine sorting output exceeding 30t/h.
High Cleanliness
The dust, chaff, and straw removal rate is ≥99%, while the removal rate for impurities such as husks and mold is ≥98%.
Dust Removal and Environmental Protection
The fully enclosed structure and four spiral dust collectors ensure a stable working environment.
Stability and Reliability
The unique self-balancing design effectively reduces abnormal vibration, reduces frame load, and improves stability. The eccentric drive utilizes spherical roller bearings, offering a higher load rating and longer life.
Flexibility and Convenience
The modular design of the dust removal and gravity units allows for flexible selection based on different scenarios and needs. Each trash discharge port on the machine features a symmetrical design, eliminating the need for forward or reverse rotation. Reverse installation allows for reverse trash discharge.
Multi-Purpose Machine
Suitable for cleaning and processing a wide range of crop seeds or commercial grains.
| Name | Double Gravity Table Cleaner |
|---|---|
| Model | 5XFZ-300Z |
| Gravity Sieve (mm) | 1700x2565 |
| Power (kw) | 44.35 |
| Capacity (t/h) | 30-60 |
| Weight (kg) | 6500 |
| Overall Size L x W x H | 4400x3366x4561 |
Подобни продукти

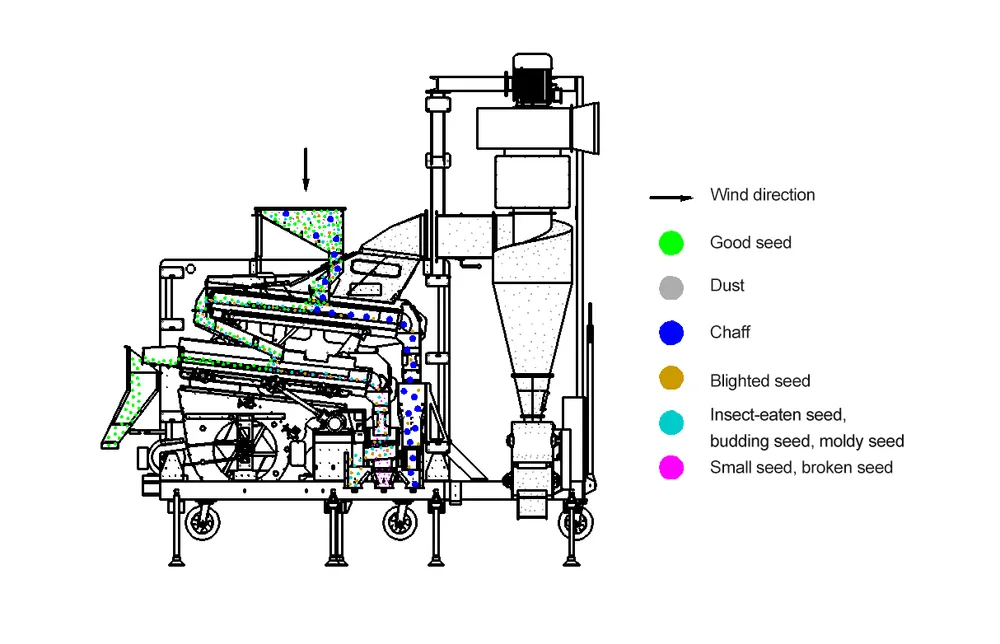

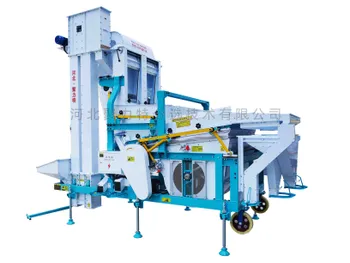

This machine consists of ultra low speed, no broken elevator, vertical air screen, cyclone dedusting system, large proportion platform, vibrating and grading screen. It can remove dust, chaff, shell and other light impurities. It can also remove the blighted seed, budding seed, damaged seed (by insect), rotten seed, deteriorated seed, moldy seed, non-viable seed, seed with black powder sick. After the large and small impurities have removed, the finished product can be divided into best, medium and small particles.
Our wheat processing machine is suitable for the centralized cleaning and processing of various raw grains. Compared with traditional grain cleaners, it has significant advantages such as high output, multi-function integration, high precision, environmental protection, and energy saving. It is suitable for cleaning and processing various crop seeds or commercial grains such as corn, wheat, paddu rice, barley, peas, soybeans, mung beans, and oil seed.

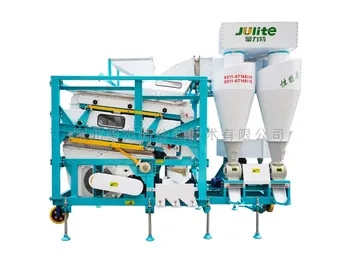

The Double Gravity Table Cleaner is a bean processing machine. The machine consists of double gravity table and offers better selection effect. Environmental, Enclosed structure and can purify air more effectively Energy saving, Reduce the loss of wind energy, Reduce power consumption. Stable and Reliable, Advanced Swiss technology.
