5XFZ-40Z Double Gravity Table Cleaner
- Name : Double Gravity Table Cleaner
- Model: 5XFZ-40Z
- Sieve Surface Area (mm) : 2000 x 1700
- Power (kw) : 20.55
- Capacity (T/H) : 20-30
- Weight (T) : 3.3
- Overall Size L x W x H (mm) : 4500 x 2840 x 3550
Доставка
Срокът на доставка обикновено варира от 15 до 30 работни дни след потвърждаване на поръчката, в зависимост от конфигурацията на продукта, производствения график и местоназначението. Всички машини са надеждно опаковани за безопасно транспортиране. Точните срокове за доставка, начинът на доставка и подробностите за проследяване ще бъдат потвърдени преди изпращането.
Описание

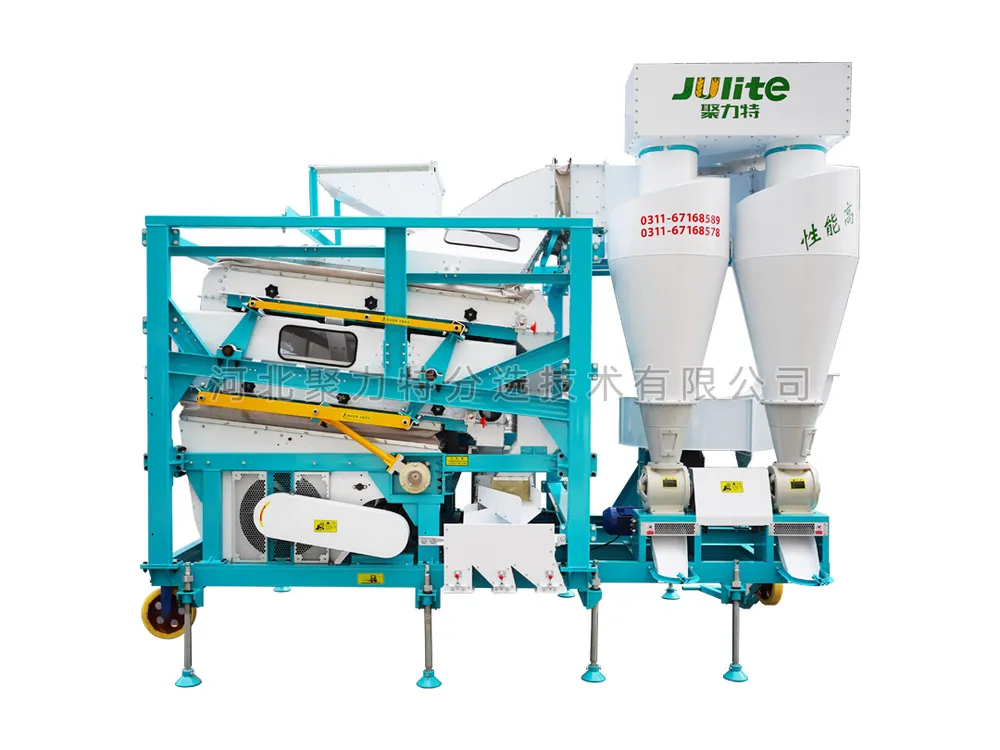

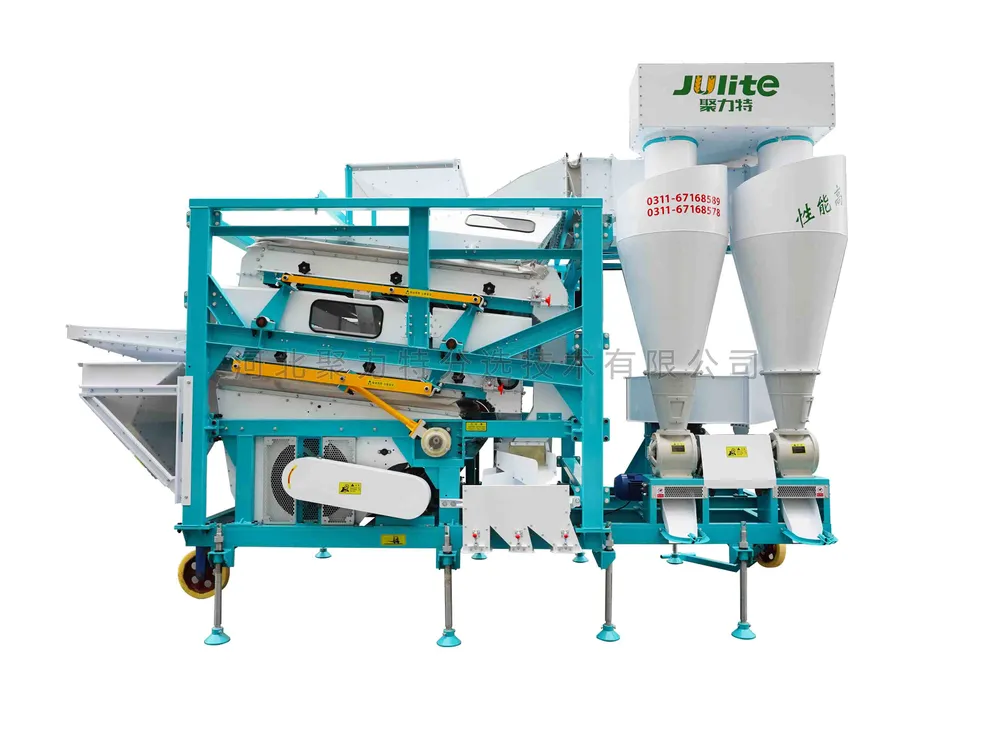

The Double Gravity Table Cleaner is a bean processing machine. The machine consists of double gravity table and offers better selection effect. Environmental, Enclosed structure and can purify air more effectively Energy saving, Reduce the loss of wind energy, Reduce power consumption. Stable and Reliable, Advanced Swiss technology.
Functions
- The bean cleaning machine applies to all kinds of material production. The capacity is 10t/h for sesame, 30t/h for wheat.
- Remove dust, chaff, straw, injured seed, sprout seed, month seed, mildew grain and other light impurities in one time.
- With winnowing, selection, grading.
- The bean grading machine is suitable for the grain or seed with much impurity less moldy parts relatively.
Advantages
Double gravity design, Better selection effect. Environmental, Enclosed structure and can purify air more effectively Energy saving, Reduce the loss of wind energy, Reduce power consumption. Stable and Reliable, Advanced Swiss technology.
| Name | Double Gravity Table Cleaner |
|---|---|
| Model | 5XFZ-40Z |
| Sieve Surface Area (mm) | 2000 x 1700 |
| Power (kw) | 20.55 |
| Capacity (T/H) | 20-30 |
| Weight (T) | 3.3 |
| Overall Size L x W x H (mm) | 4500 x 2840 x 3550 |
