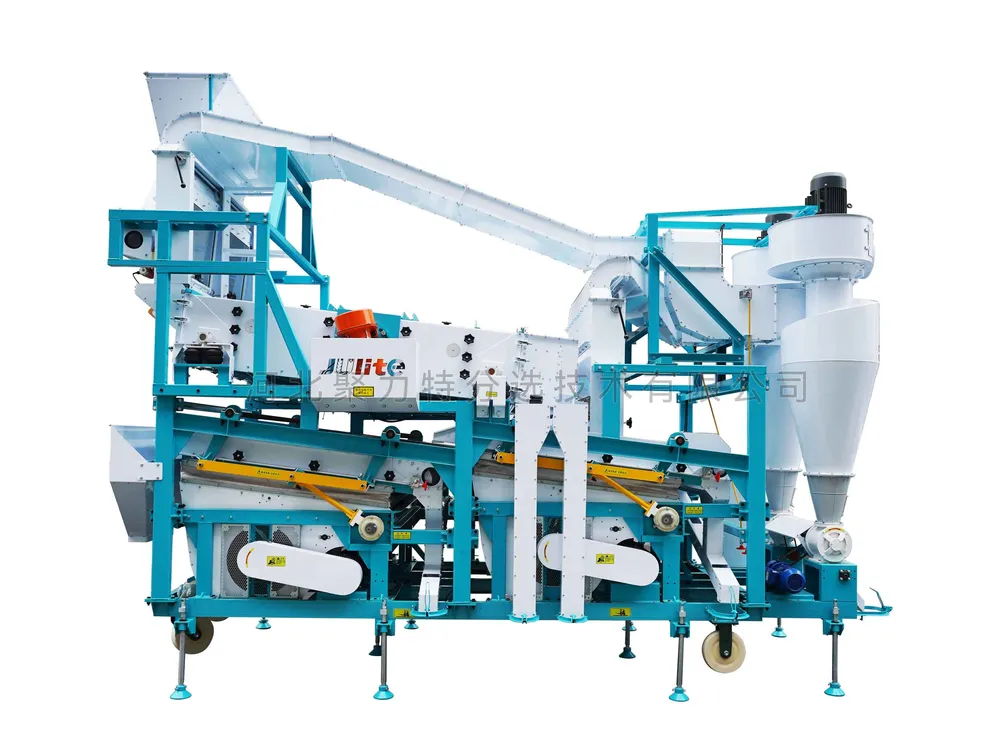

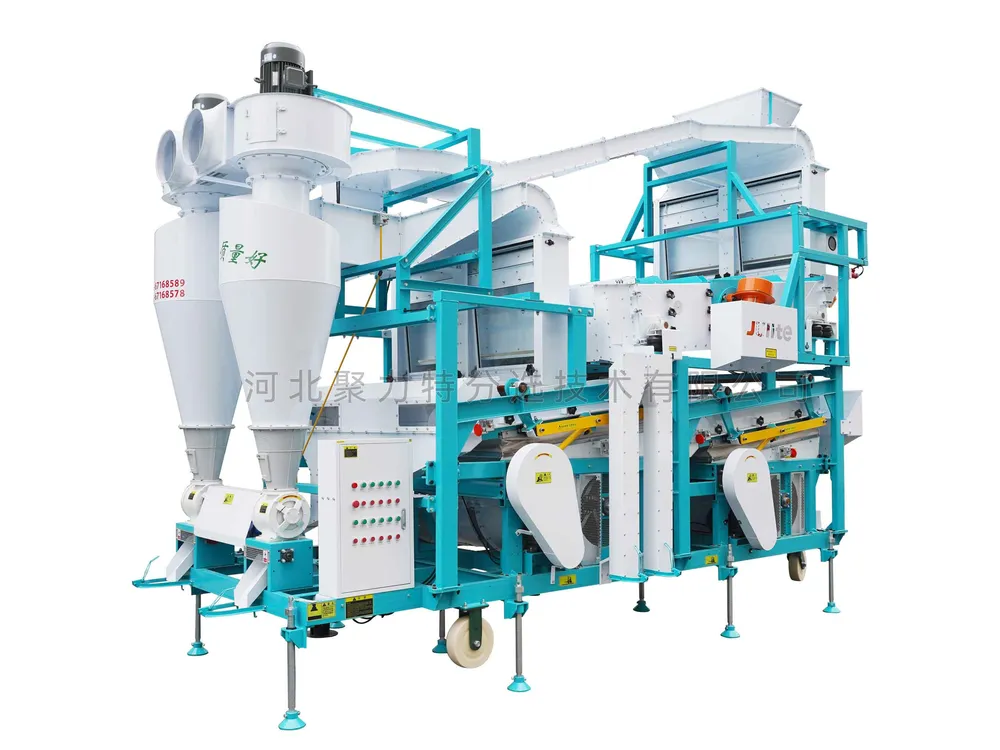

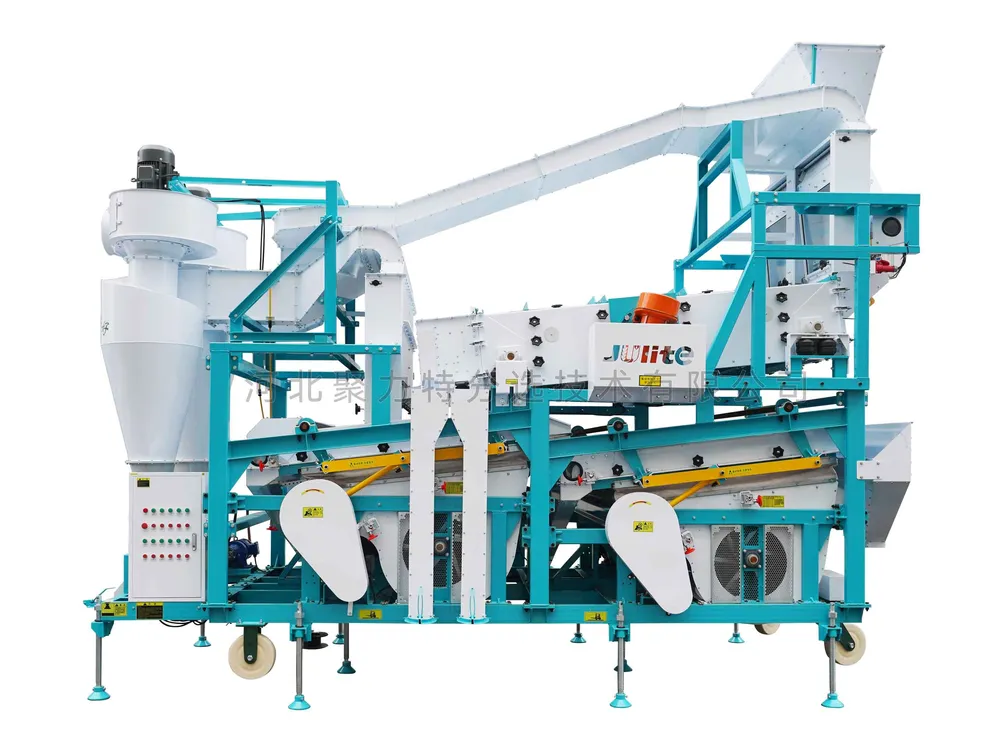

5XFZ-50 Double Air Screen Cleaner with Double Gravity Table
- Name: Double Air-screen Cleaner with Double Gravity Table
- Model: 5XFZ-50
- Power(kw): 33.12
- Weight(kg): 6800
Доставка
Срокът на доставка обикновено варира от 15 до 30 работни дни след потвърждаване на поръчката, в зависимост от конфигурацията на продукта, производствения график и местоназначението. Всички машини са надеждно опаковани за безопасно транспортиране. Точните срокове за доставка, начинът на доставка и подробностите за проследяване ще бъдат потвърдени преди изпращането.
Описание
The material enters the bulk grain bin via an elevator. After being evenly distributed, the grain is fed into a front air screen to remove light impurities (such as dust, chaff, and fine straw). It then enters a vibrating grading screen to remove large impurities (such as straw and cob fragments), small impurities (such as broken grains, sand, and dust), and small particles from the raw grain. The main material then passes through a rear air screen to remove light impurities again. Subsequently, it flows into two gravity tables connected in series for two gravity separation processes to remove light impurities such as chaff, sprouted grains, insect-damaged grains, and moldy grains. Finally, the finished product is discharged.
Features
- Comprehensive Functionality: Integrates dual air separation, dual dust removal, screening, and dual gravity separation functions into one unit, boasting high integration and a small footprint; reduces multiple lifting operations and minimizes processing losses.
- High Output: Utilizes a dual air screen, dual gravity platform, and widened screen box structure to ensure high output and high purity.
- Dust and Environmental Protection: Equipped with independent cyclone dust collectors and fans at both the front and rear air screens, offering convenient control, flexible operation, and dust-free environmental protection during processing.
- Stability and Reliability: A special balancing structure design effectively reduces abnormal equipment vibration, ensuring stable operation.
Scope of Application
It is suitable for cleaning and processing various crop seeds and commercial grains such as wheat, corn, soybeans, rapeseed, peas, mung beans, barley, and millet.
| Name | Double Air-screen Cleaner with Double Gravity Table |
|---|---|
| Model | 5XFZ-50 |
| Gravity Sieve (mm) | 1700x2000 |
| Power(kw) | 33.12 |
| Weight(kg) | 6800 |
| Seed Grain Capacity (t/h) | 20 |
| Commodity Grains Capacity (t/h) | 40 |
| Overall Size L x W x H (mm) | 5900×2820×4360 |
