Color sorter
Доставка
Срокът на доставка обикновено варира от 15 до 30 работни дни след потвърждаване на поръчката, в зависимост от конфигурацията на продукта, производствения график и местоназначението. Всички машини са надеждно опаковани за безопасно транспортиране. Точните срокове за доставка, начинът на доставка и подробностите за проследяване ще бъдат потвърдени преди изпращането.
Описание

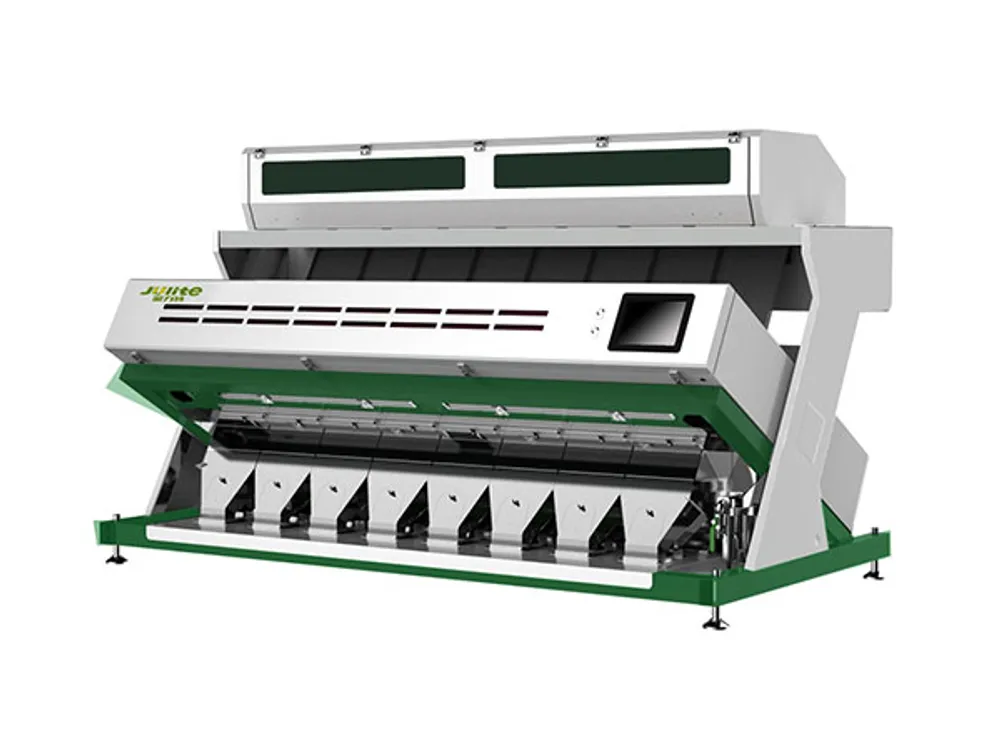

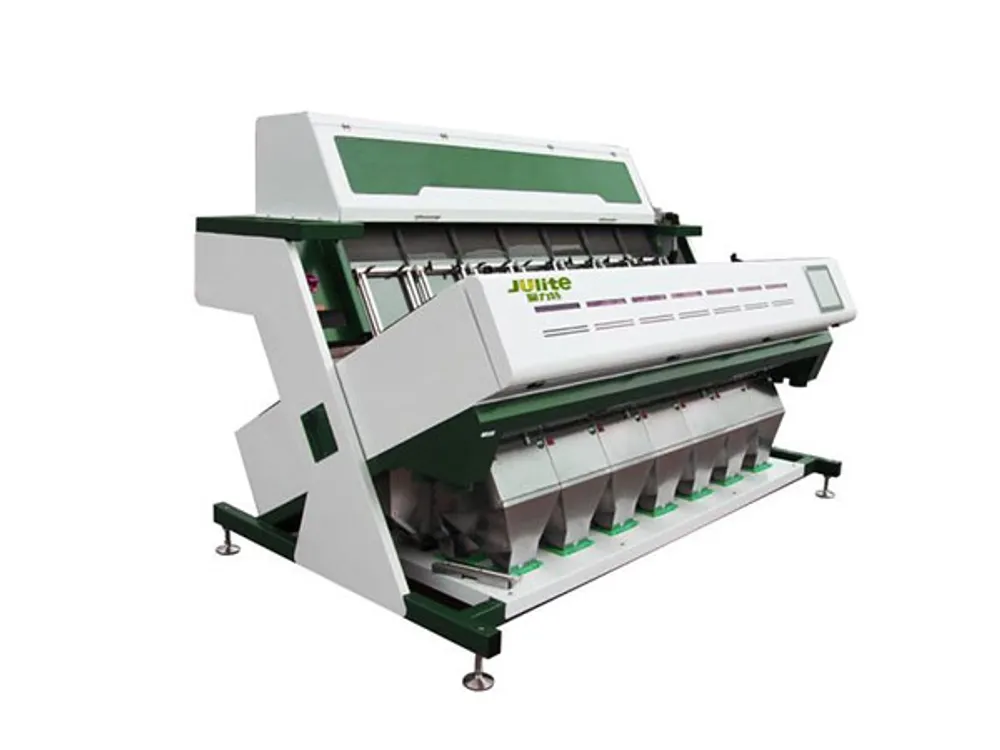

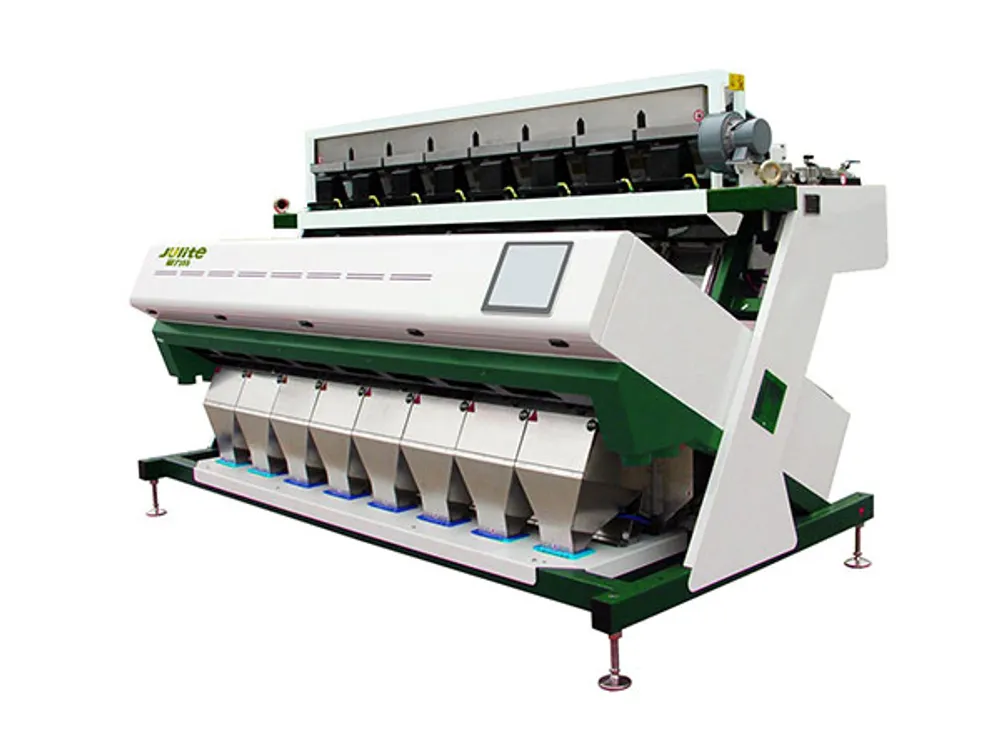

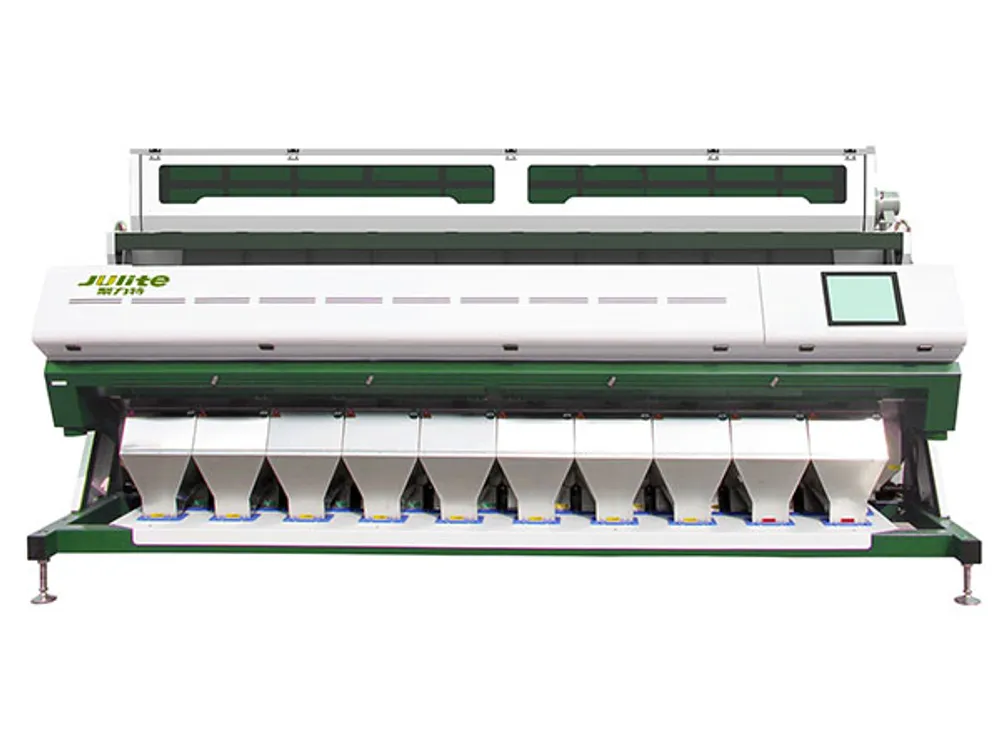

C Series-Multipurpose Color sorter - Apply for many kinds of beans, sesame and other grains. 99.99% Sorting Accuracy.
Functions
- LED:Split LED design, Germany OSRAM;high brightness, life-time up to 100,000 hours, and equipped with intelligent control dimming technology;
- Sensor: Japanese TOSHIBA ;Industrial color CCD of 160 million pixels, line frequency ≥ 10K, the minimum area of different colors can be up to 0.0004 square millimeters;
- Lens: Japanese NIKON, optical industry customized lens, with 150 line pairs of ultra-high resolution, low distortion:<0.2%, low color difference: <0.1 pixel, better imaging performance;
- Processor: ALTERA programmable logic device processor: data processing speed>5500k bits; data transmission speed> 210mhz; the system data acquisition and processing speed >3.125 Gbps, is extremely high;
- Solenoid valve: customized solenoid valve for color sorter; All imported alloy materials, MATRIX technology introduced in Italy, shutdown time;
- Operation interface: 15-inch HD industrial computer, Intel CPU, Windows operating system, 24-bit true color display, more realistic image display;
- Intelligent operation interface, visual analysis of images, one-click analysis of the proportion of impurities to be removed and transfer of sorting parameters, easier operation;
- Support remote control for mobile phone apps and monitoring equipment operation, convenient and fast;
- Support Internet remote control, system upgrade function, HD image acquisition, visual system adaptive correction technology, self-learning statistical analysis technology, and one-key automatic parameter adjustment technology;
Frontward and backward vibrator adjustable platform, easy for multiple products.
Specifications
| MODEL | CHANNEL | EJECTORS | DIMENSION (mm) | WEIGHT (kg) | POWER (kW) | SESAME | PEANUTS | GREEN MUNG BEAN | COFFEE BEAN | CHICKPEA | WHEAT | CORN | UNIT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C1 | 1/0 | 64 | 975×1550×1400 | 240 | 0.8 | 250–500 | 600–900 | 500–800 | 500–800 | 700–1000 | 800–1500 | 800–1500 | Throughput of different grains (kg/h) |
| C2 | 2/0 | 128 | 1240×1705×1828 | 500 | 1.1 | 500–1000 | 1200–1800 | 1000–1600 | 1000–1600 | 1400–2000 | 1600–3000 | 1600–3000 | |
| C3 | 2/1 | 192 | 1555×1707×1828 | 800 | 1.4 | 500–1000 | 1200–1800 | 1000–1600 | 1000–1600 | 1400–2000 | 1600–3000 | 1600–3000 | |
| C4 | 3/1 | 256 | 1869×1707×1828 | 1000 | 1.8 | 750–1500 | 1800–2700 | 1500–2400 | 1500–2400 | 2100–3000 | 2400–4500 | 2400–4500 | |
| C5 | 4/1 | 320 | 2184×1707×1828 | 1100 | 2.2 | 1000–2000 | 2400–3600 | 2000–3200 | 2000–3200 | 2800–4000 | 3200–6000 | 3200–6000 | |
| C6 | 4/2 | 384 | 2500×1707×1828 | 1350 | 2.8 | 1000–2000 | 2400–3600 | 2000–3200 | 2000–3200 | 2800–4000 | 3200–6000 | 3200–6000 | |
| C7 | 5/2 | 448 | 2814×1707×1828 | 1350 | 3.2 | 1250–2500 | 3000–4500 | 2500–4000 | 2500–4000 | 3500–5000 | 4000–7500 | 4000–7500 | |
| C8 | 6/2 | 512 | 3129×1707×1828 | 1500 | 3.7 | 1500–3000 | 3600–5400 | 3000–4800 | 3000–4800 | 4200–6000 | 4800–9000 | 4800–9000 | |
| C10 | 7/2/1 | 640 | 3759×1710×1828 | 1750 | 4.2 | 1750–3500 | 4200–6300 | 3500–5600 | 3500–5600 | 4900–7000 | 5600–10500 | 5600–10500 | |
| C12 | 8/3/1 | 768 | 4389×1710×1828 | 1900 | 4.8 | 2000–4000 | 4800–7200 | 4000–6400 | 4000–6400 | 5600–8000 | 6400–12000 | 6400–12000 |
Remarks:
The above data is based on raw materials with an impurity content rate of 3%–1% after cleaning.
